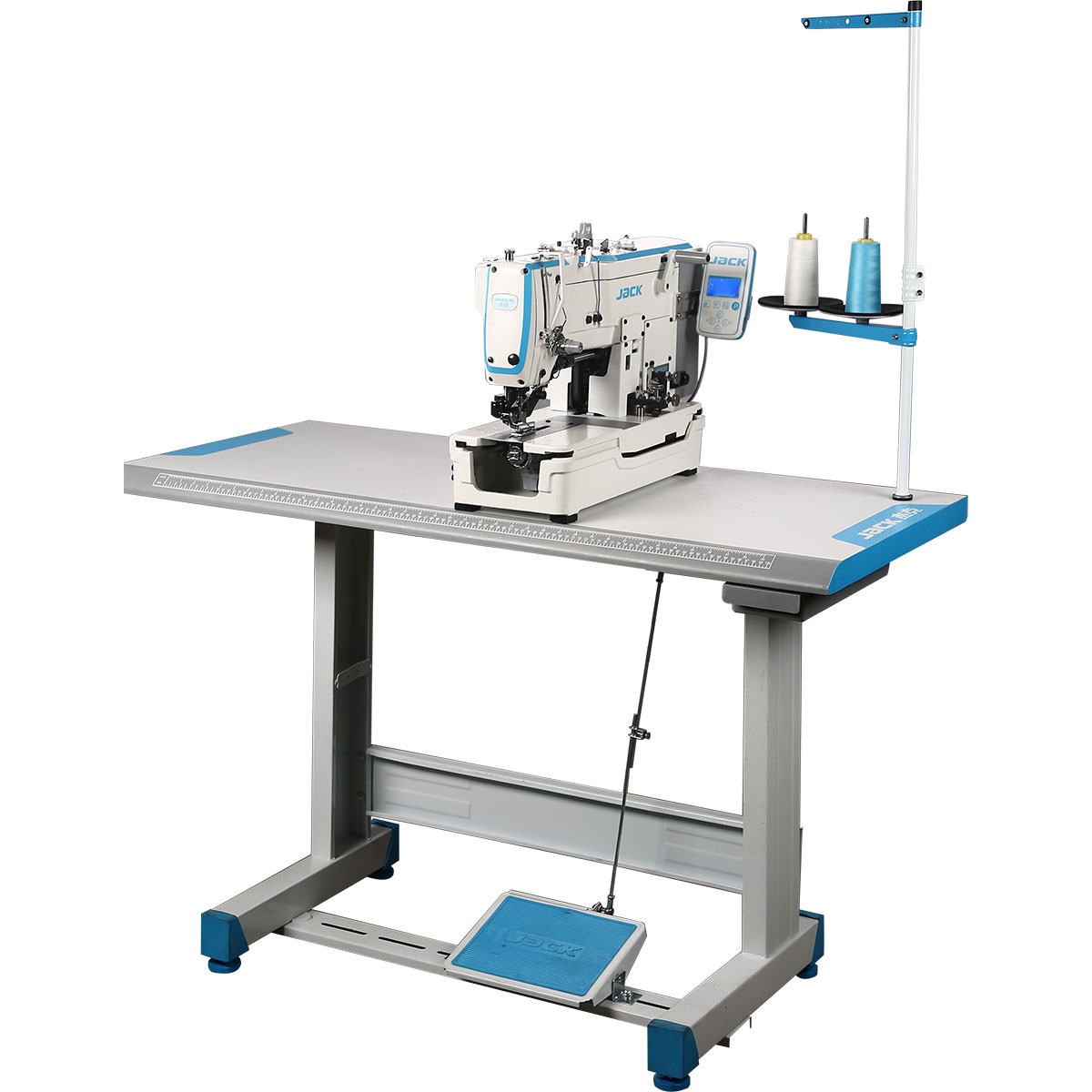

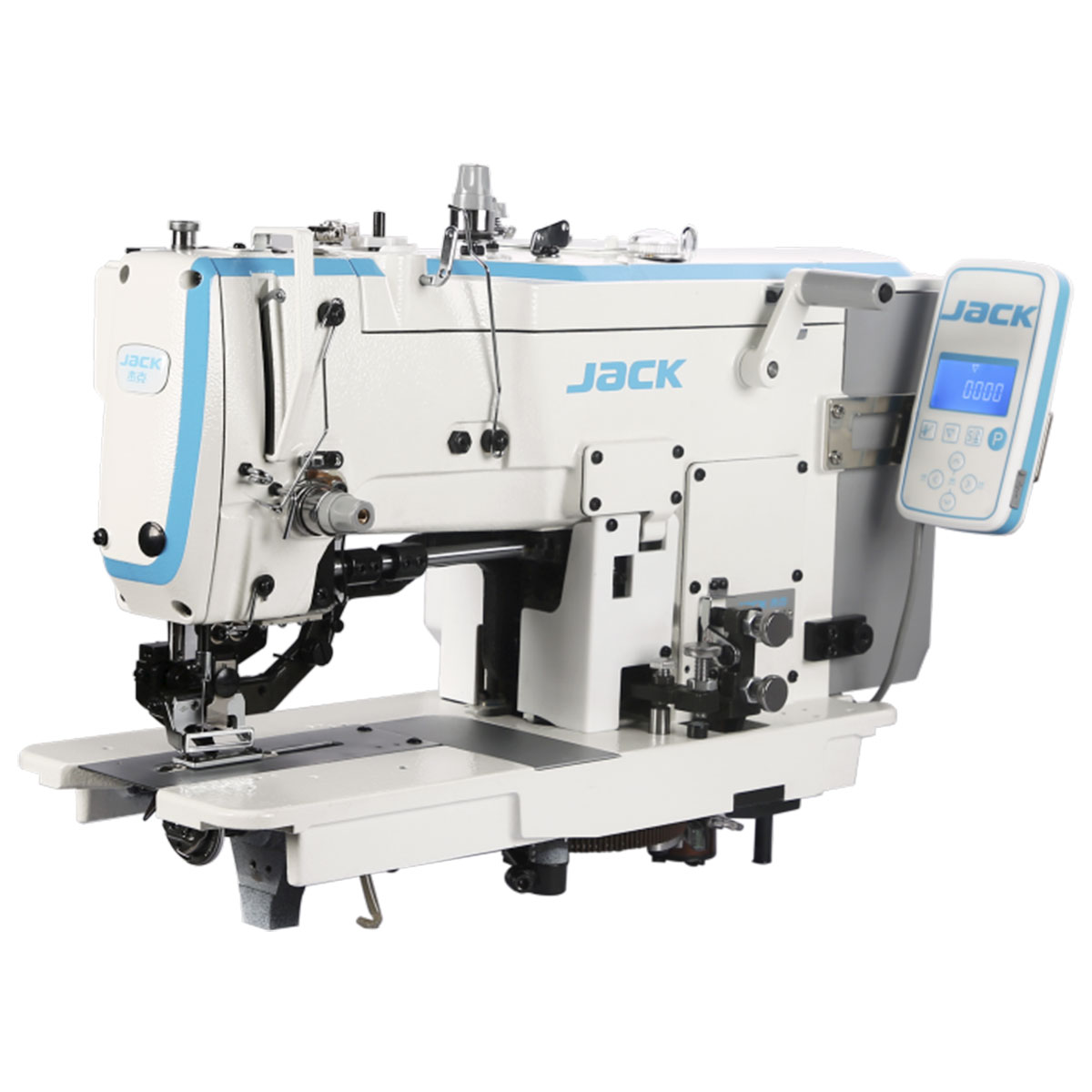

JACK JK-T781G-Z
General information
The JK-T781G for single-needle lockstitch buttonholes with integrated motor is driven by a built-in servo motor, with functions such as automatic presser foot lifter and thread trimmer.
The integrated Direct Drive motor provides smooth and stable operation without the noise and vibration of typical belt-driven machines.
The direct drive motor saves up to 70% electricity compared to older motors.
Advantages
High efficiency and excellent quality
One of the best features of this machine is the handy side panel that allows you to control some of the machine's key operations.
Wide range of applications

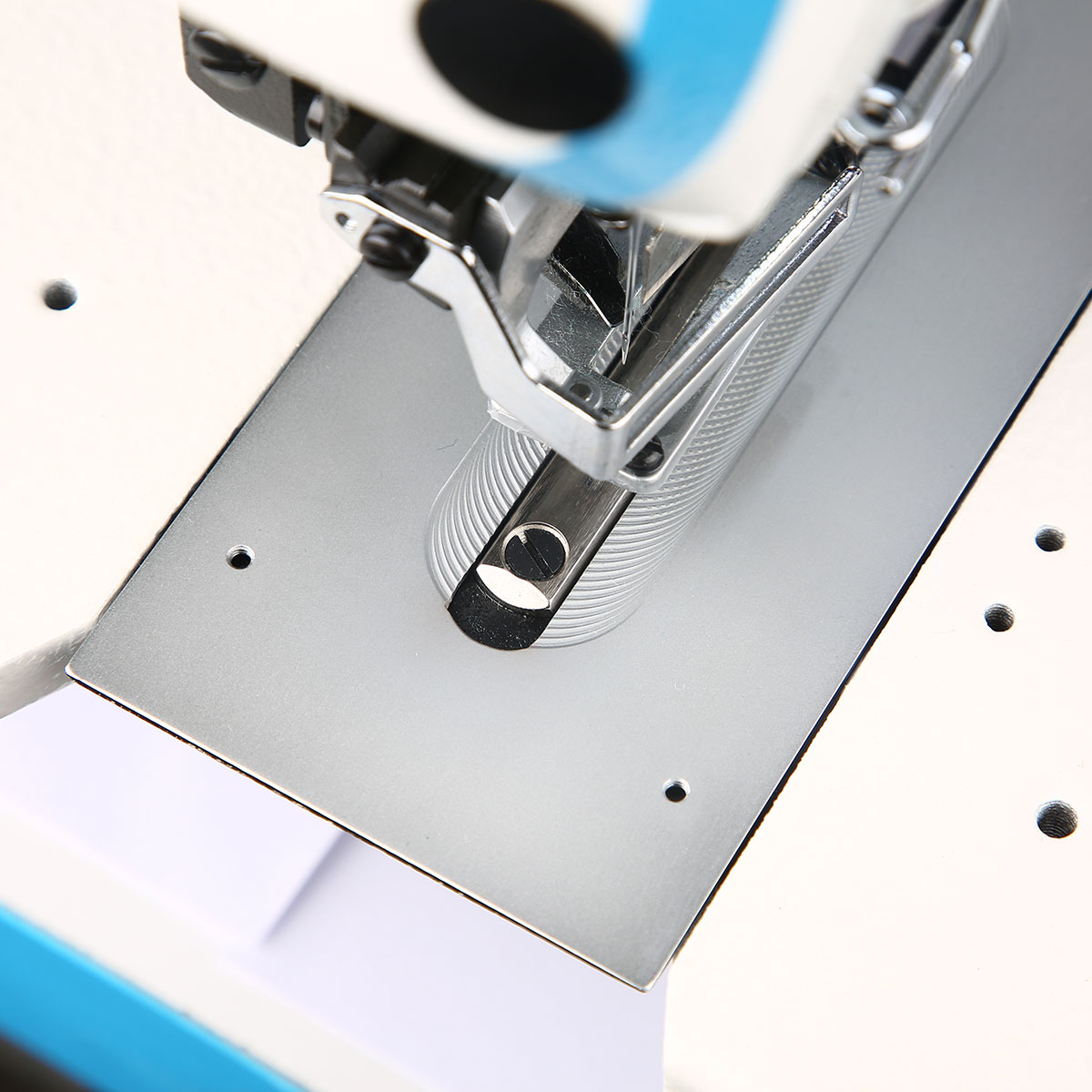

It is equipped with a special knitting fabric, a special presser foot, a small needle plate and a feed plate.
TECHNOLOGIES
- This machine is more suitable for knitted material with lower yarn breakage rate.
- Automatic lifting and cutting, energy saving and efficiency.

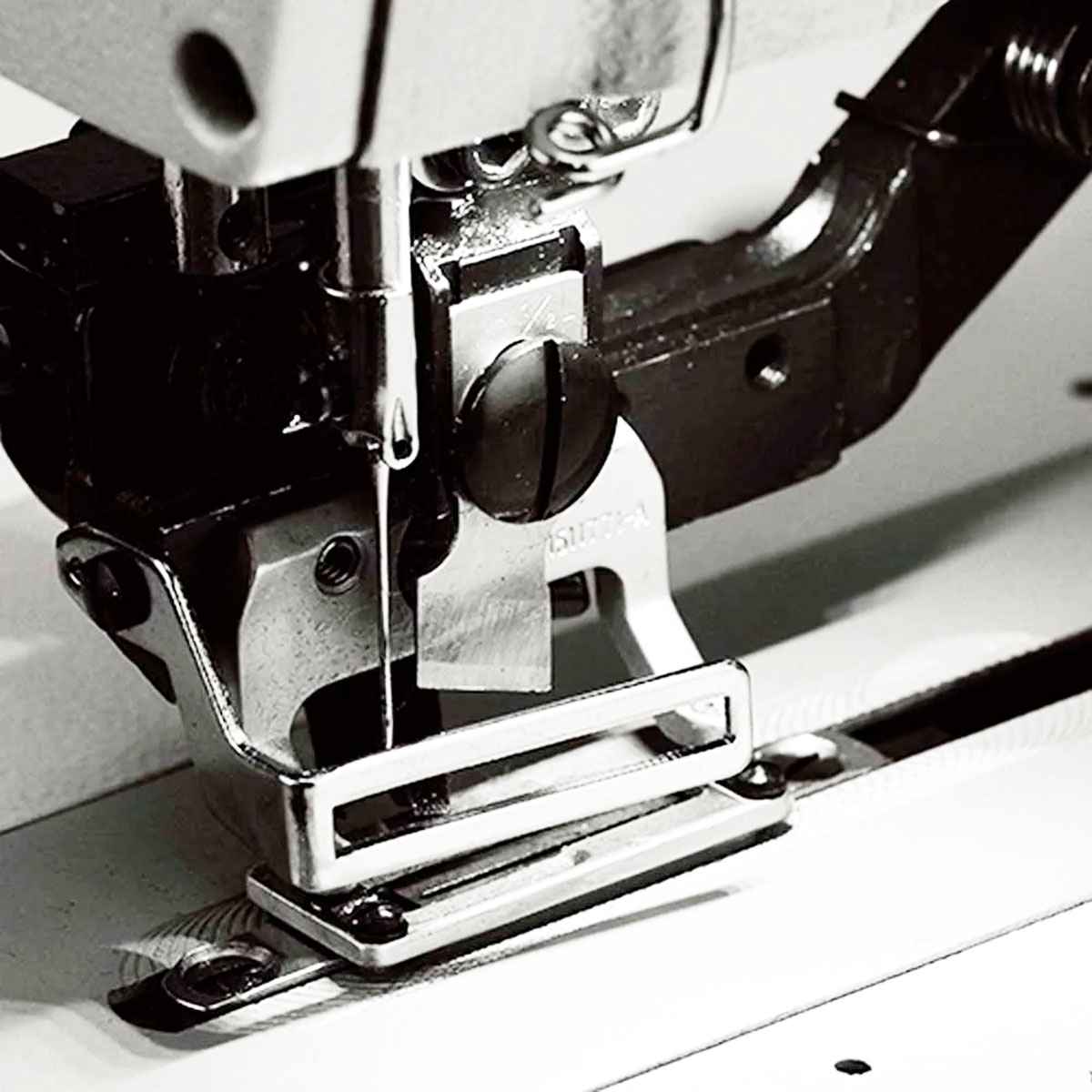

- With automatic presser foot lifting and automatic cutting functions, it improves work efficiency and reduces labor intensity.
- Bottom thread detection: When the bobbin thread margin is insufficient (after sewing the current buttonhole), it stops in time.
APPLICABILITY
- Machine designed to sew buttonholes on men's and women's dress shirts, blouses, workwear and women's clothing.
ACCESSORIES
OTHER SPECIFICATIONS
- Sewing speed: 3600 spm.
- Buttonhole length: - intersection 6.4 - 19.0 mm *.
- Buttonhole length - trimming 9.4 - 22.0 mm *.
- Buttonhole width - band 2.5 - 4.0 mm *.
- Elevation of the working clamp: 12 mm.
