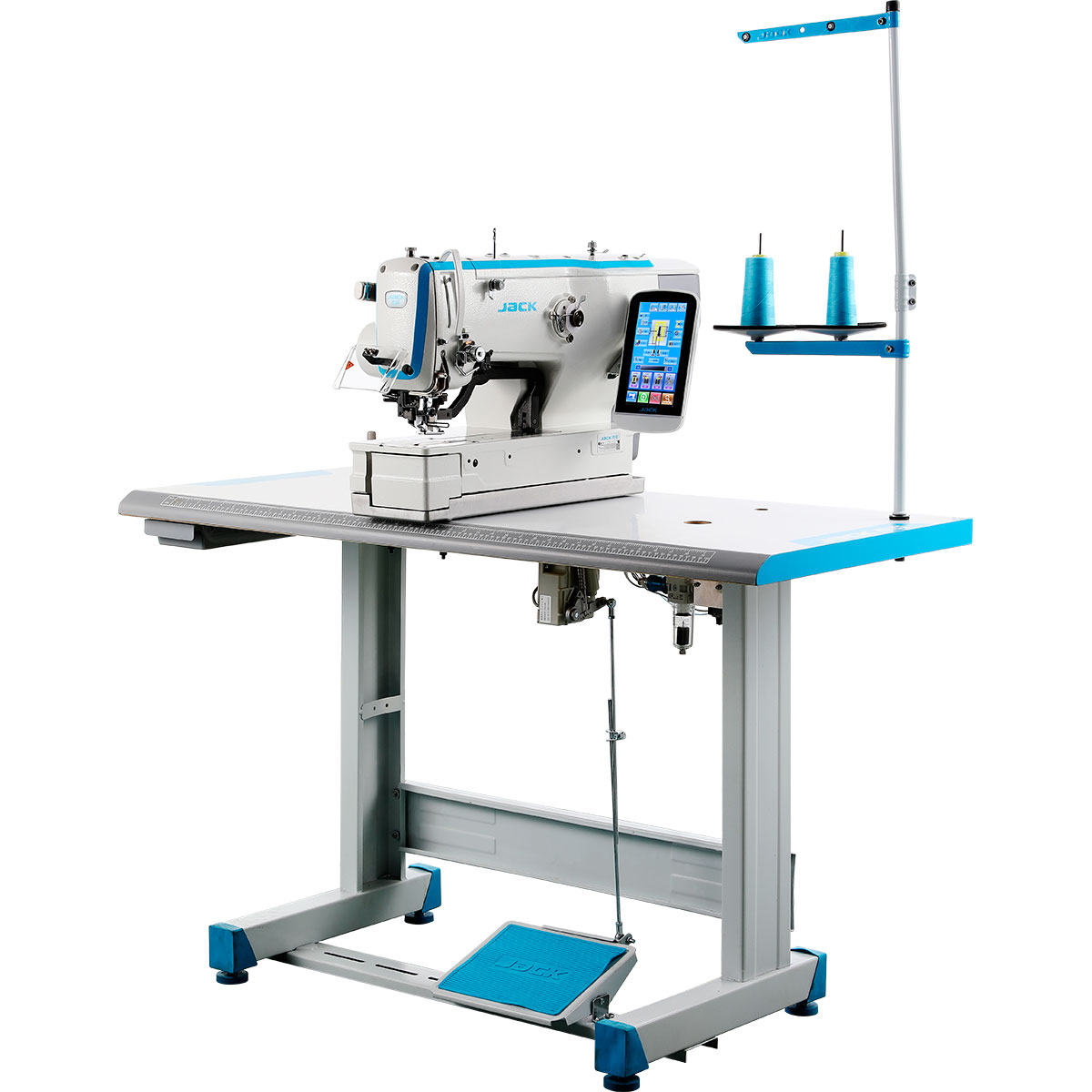

JACK JK-T1790GS-1-D
General information
Semi-dry head to ensure clean seams. Multiple cutting function, different types of buttonholes available. Cooling system for longer machine life.
Multifunctional buttonhole machine, electronically controlled programmed, driven by AC servo motor, with features such as low vibration, low noise. High efficiency and excellent sewing quality.
Advantages

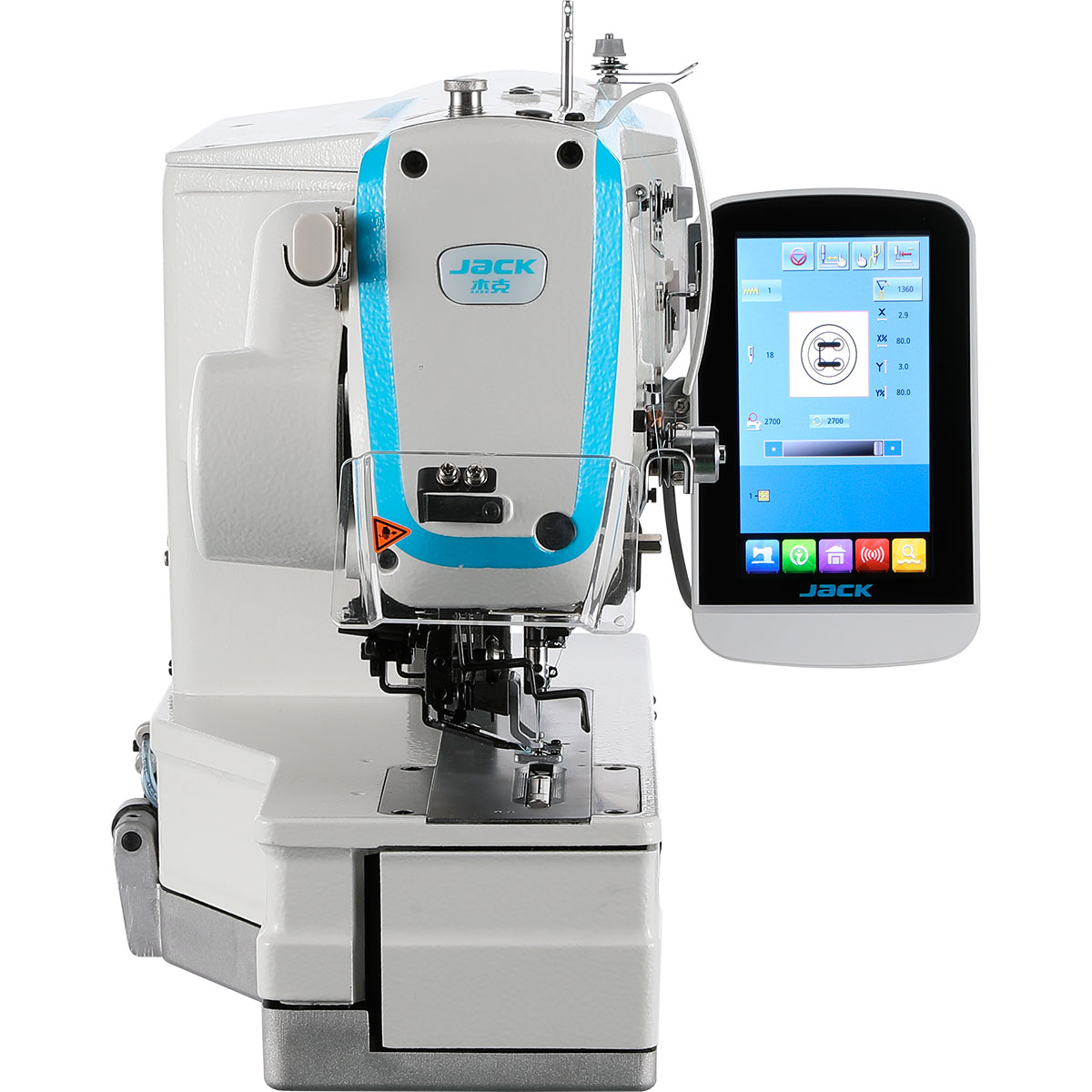

Touch screen
The software allows you to design buttonholes and program their repetition, you will find 31 pre-installed stitching motifs and up to 500 motifs in total, plus the USB port allows you to import designs, update the software and recharge/power external devices.
Integrated control box
Small and compact with no external cables, it allows for easy installation and simple transport.
TECHNOLOGIES
- Stepper motor: Fabric feed, needle movement and buttonhole cutting blade are controlled by a built-in stepper motor, making the sewing process more precise and quiet without vibration, saving energy.

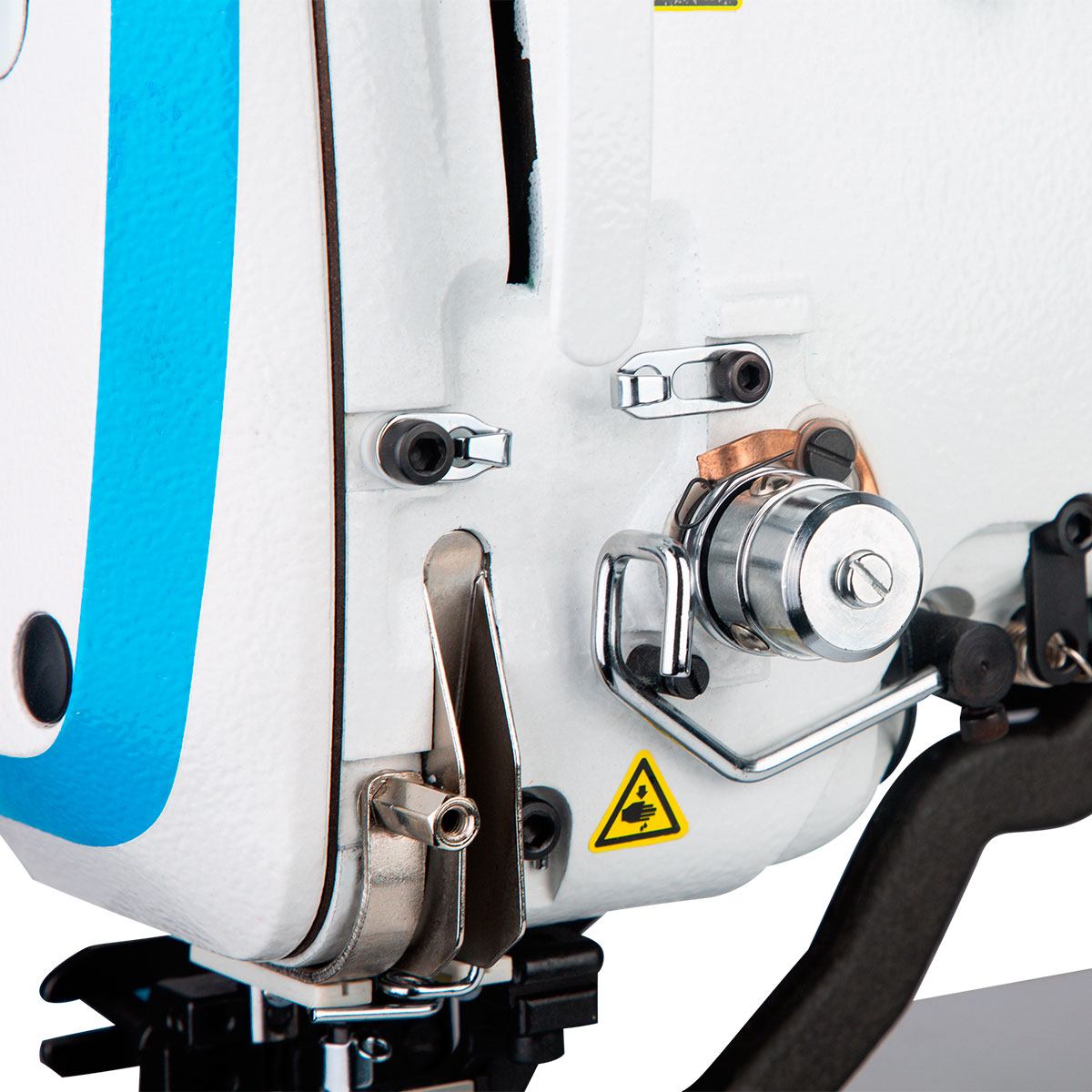

- Semi-dry head: No oil, no oil head and semi-dry hook to avoid soiling the material.
- Built-in cooling fan: The cooling fan can greatly reduce the temperature and prolong the service life of the machine.
- Multi-cutting and continuous stitching: Multi-cutting allows you to cut long buttonholes.
APPLICABILITY
- Basting: Possibility to baste the buttonhole, it is especially useful in elastic fabrics.
ACCESSORIES
N/A
OTHER SPECIFICATIONS
- 22 pattern design.
- Direct motor: 220v.
- Maximum sewing speed: 4200 spm
- Buttonhole length:
- 6,4 - 25,4 mm with standard working clamp.
- 6,4 - 31,8 mm optional (additional equipment)
- Buttonhole width max. 5mm
