JACK E4S-4-M03/333
General information
Equipped with an integrated energy-saving motor mounted in the headstock directly on the machine's main shaft (Direct Drive system), which ensures quiet and reliable operation and lower power consumption.
The machine's modern design ensures better ventilation of the motor and therefore faster and more efficient operation and, as a result, longer machine life.
Overlock JACK E4S has a simple panel for adjusting the sewing speed and needle position, as well as the ability to quickly return to the factory settings.
Integrated LED illumination of the working area.
Advantages
Stable and durable construction
Reduction of the machine's torque, resulting in a more stable operation.
Intelligent functions
Intelligent sleep mode that turns the machine off when it is idle.
TECHNOLOGIES
- Advanced Mechanical Platform. With an improved and advanced platform, the Jack E4-4 fully integrates the servo motor, control box and panel into the machine head, providing a unique and extraordinary view.
- Intelligent functions, intelligent panel. With the intelligent latency function, the machine will go into a dormant state if it stops running for more than 30 minutes.
- Integrated oil system, preventing oil leakage. Enclosed needle bar mechanism with integrated oil filtering system, oil supply and oil return prevents oil leakage.

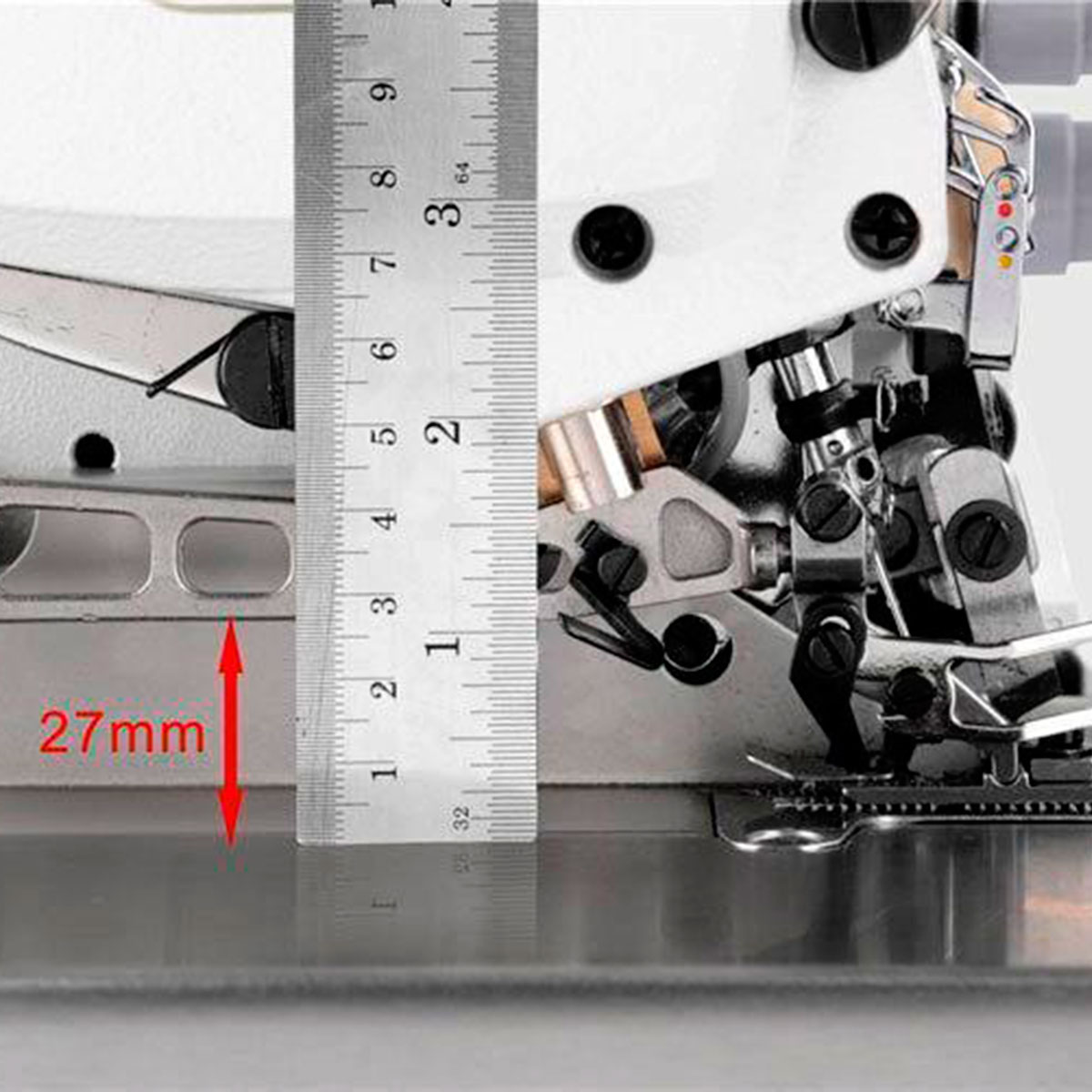

- Increased feeding space. Presser foot height increases to 27 mm and ensures larger feeding space.
APPLICABILITY
- The new S model is equipped with an easily accessible height adjustment of the feed teeth. This makes it possible to achieve perfect seams on materials of various thicknesses. The control lever can be adjusted to three positions: A - light materials (light) M - medium materials (medium) H - heavy materials (heavy).
ACCESSORIES
- Needles.
- Tweezers.
- Oil.
- Instruction book.
OTHER SPECIFICATIONS
- 4 THREADS.
- 2 NEEDLES.
- Presser foot height: 5.5 mm.
- Maximum speed: 5500 SPM.
- ADJUSTABLE FEED MECHANISM FOR SEWING LIGHT AND HEAVY FABRICS.
- AUTOMATIC LUBRICATION.
- DIRECT DRIVE SERVOMOTOR INCORPORATED IN THE HANDWHEEL, 80% ENERGY SAVING, SILENT WITHOUT BELT.
