JACK JK-2284B-4E
General information
Automatic Zig-Zag machine, equipped with an energy-saving motor mounted on the head, directly on the main shaft of the machine (Direct Drive). This solution ensures quiet and reliable operation and lower power consumption.
A closed lubrication system (without the typical oil pan) ensures lower oil consumption. Better lubrication of the machine mechanisms and protection against accidental smearing of the material.
Advantages
Informatized
The various advanced functions of the machine can be adjusted through the panel.

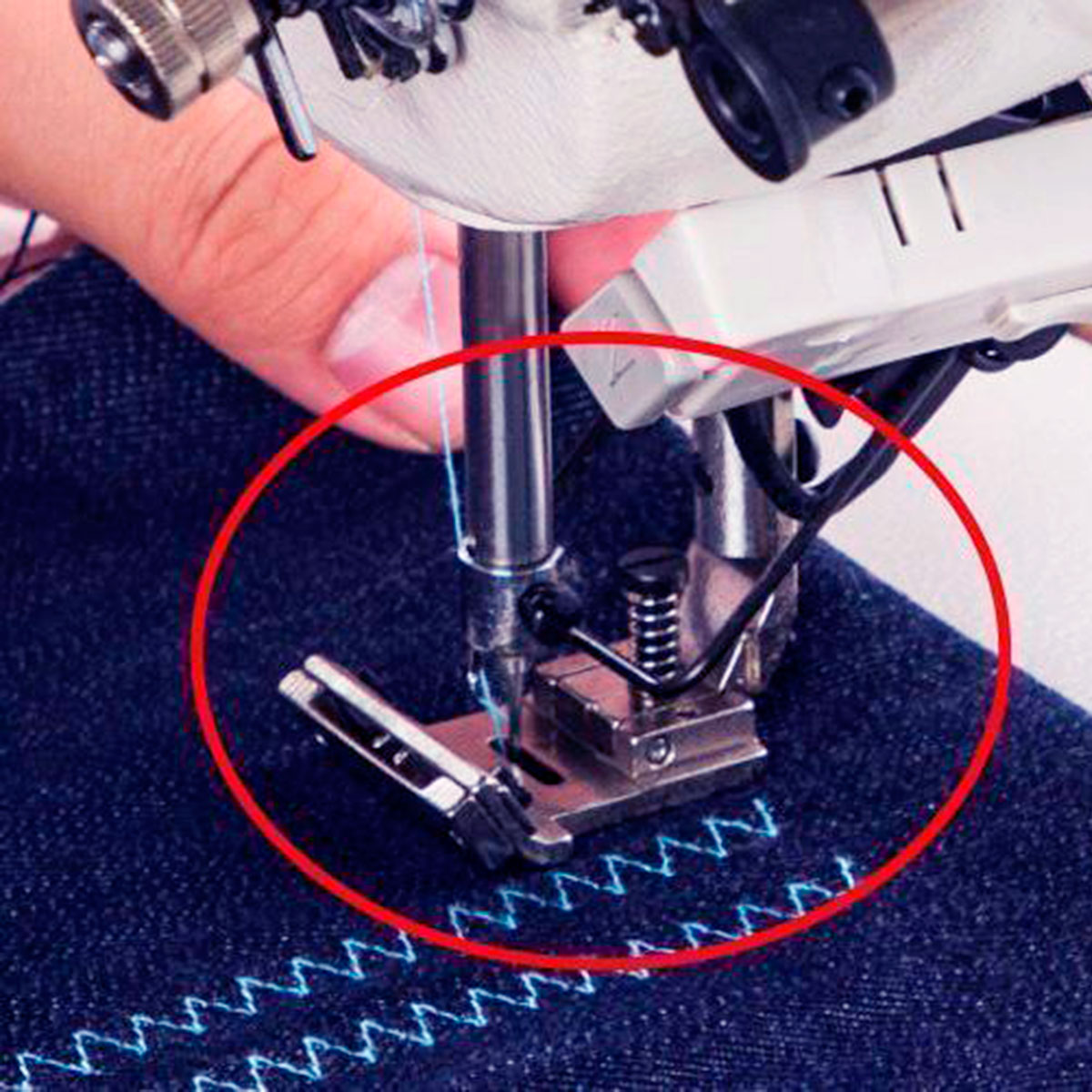

Elastic foot
Seams made of fine materials and elastic fabrics remain particularly stable.

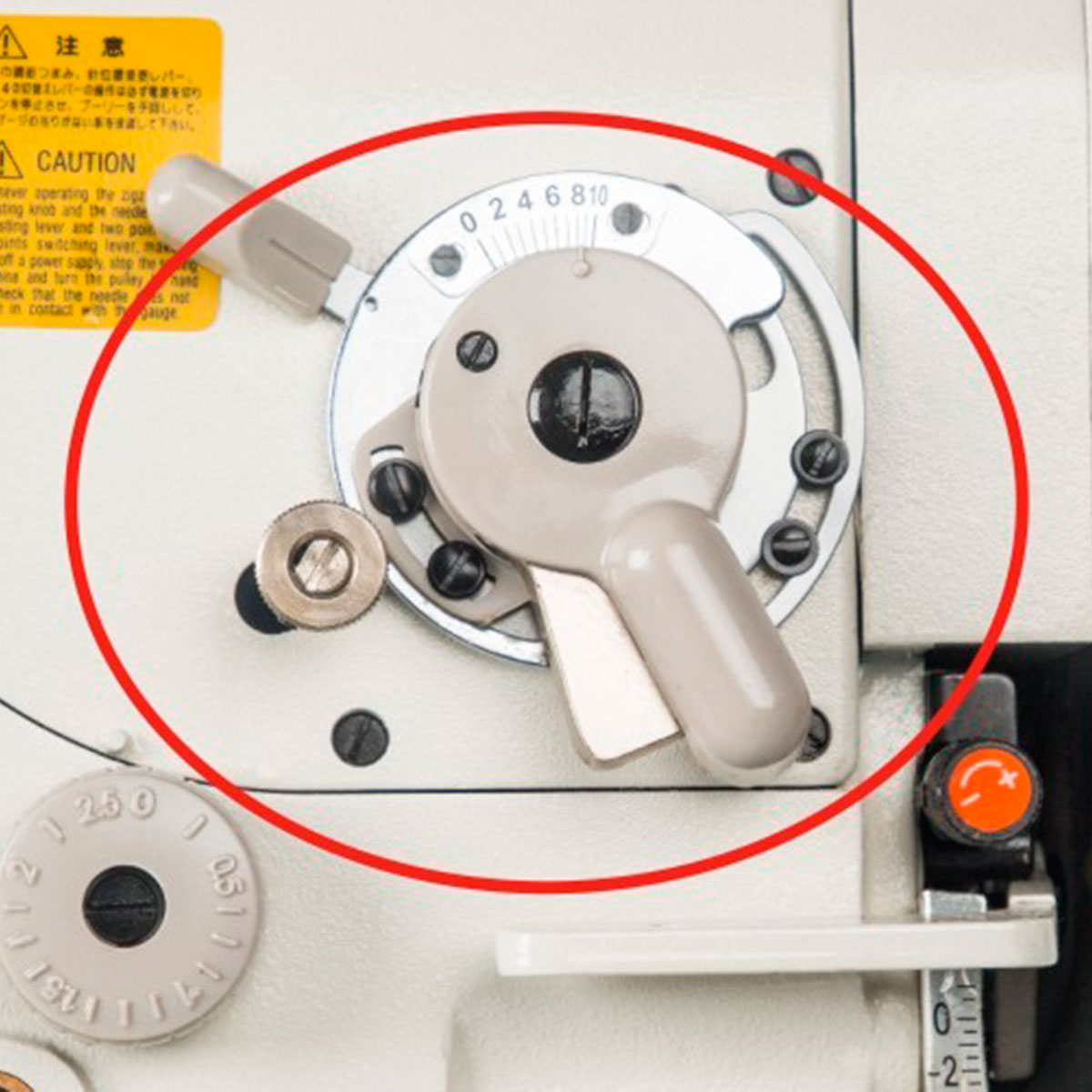

Easy adjustment of the zig zag width: With a knob it is possible to adjust the needle bar oscillation according to the user's needs. 3 point zig zag available with this pattern.
The JK-2284 machine is suitable for sewing: women's underwear, jackets, gloves, elastic gussets and other products requiring zigzag stitches up to 8 mm wide or three stitches.
Work table
- Stitch pitch: 8
- Presser foot height: 5.5-10 mm.
- Auto Reverse: Yes.
- Auto Trimming: Yes.
- Auto Thread tension release: Yes.
- Auto Cleaner: Yes.
- Automatic presser foot lifter: Yes.
- Speed: 4500 spm.
- Weight: 39/47.
- Volume: 770x350x620 mm.
