JACK C6-4-M03/333
General information
The Overlock Jack C6-5-03-333 automatic 5-thread overlocker offers the possibility to work in manual, semi-automatic or automatic mode. Manual with full use of the foot pedal, semi-automatic with the use of the foot pedal while the cutting and lifting of the presser foot are automatic thanks to the photocells, and finally automatic where the machine operates only with the photocells.
Advantages
Acceleration
Efficiency increased by 35%. Response increased by 14.3%: acceleration from 0 to 6000 rpm in 120 ms.
Industry 4.0
Thanks to the integrated WIFI module, you can modify the parameters and control the productivity of the machine directly from the application.
- Automatic material and thickness recognition.
- Digital presser foot lifter.
- The clearance has been increased by 54% (from 4.2 mm to 6.5 mm). After lifting the presser foot from the servomotor, the feed is lowered. You can place 8 to 12 layers of jeans while sewing without damaging or scratching them: the feed is automatically reset during normal sewing.
- Large space under the lifting foot.
- Noise reduction: Thanks to the stepper motors, we have been able to reduce the noise guaranteeing 75dB at 6000rpm during sewing, 70dB during cutting and also during presser foot lifting.
- Voice guide: Learn the new functions thanks to the voice guide, otherwise you can only use it for errors and how to solve them by pressing the VOICE button.
Digital selector Light / Medium / Heavy Duty. Thickness Recognition: Intelligent recognition when sewing thicknesses with consequent automatic speed reduction and increased resistance, making the seam smoother.

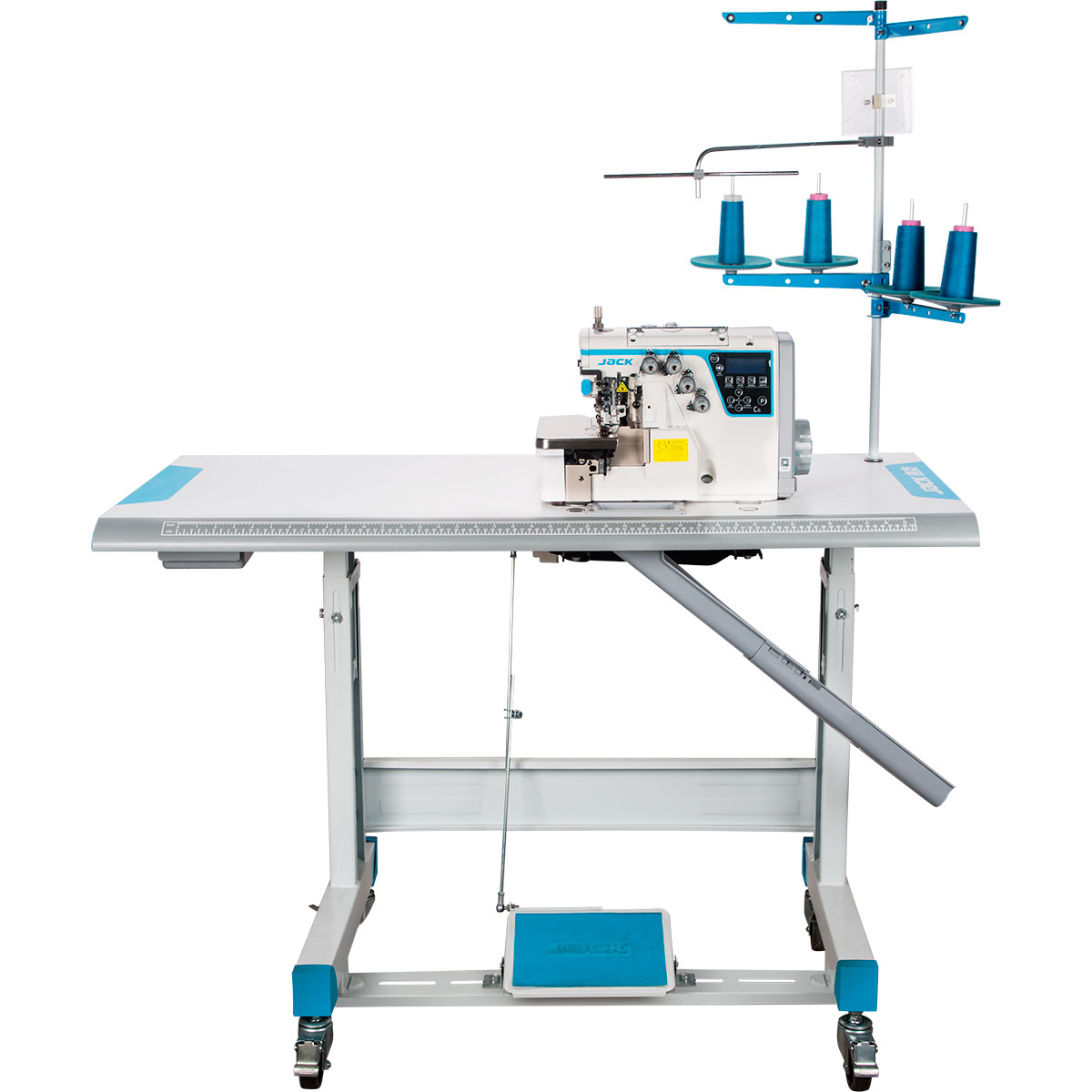

Work table.
Number of needles: 2.
Distance between needles: 3 mm.

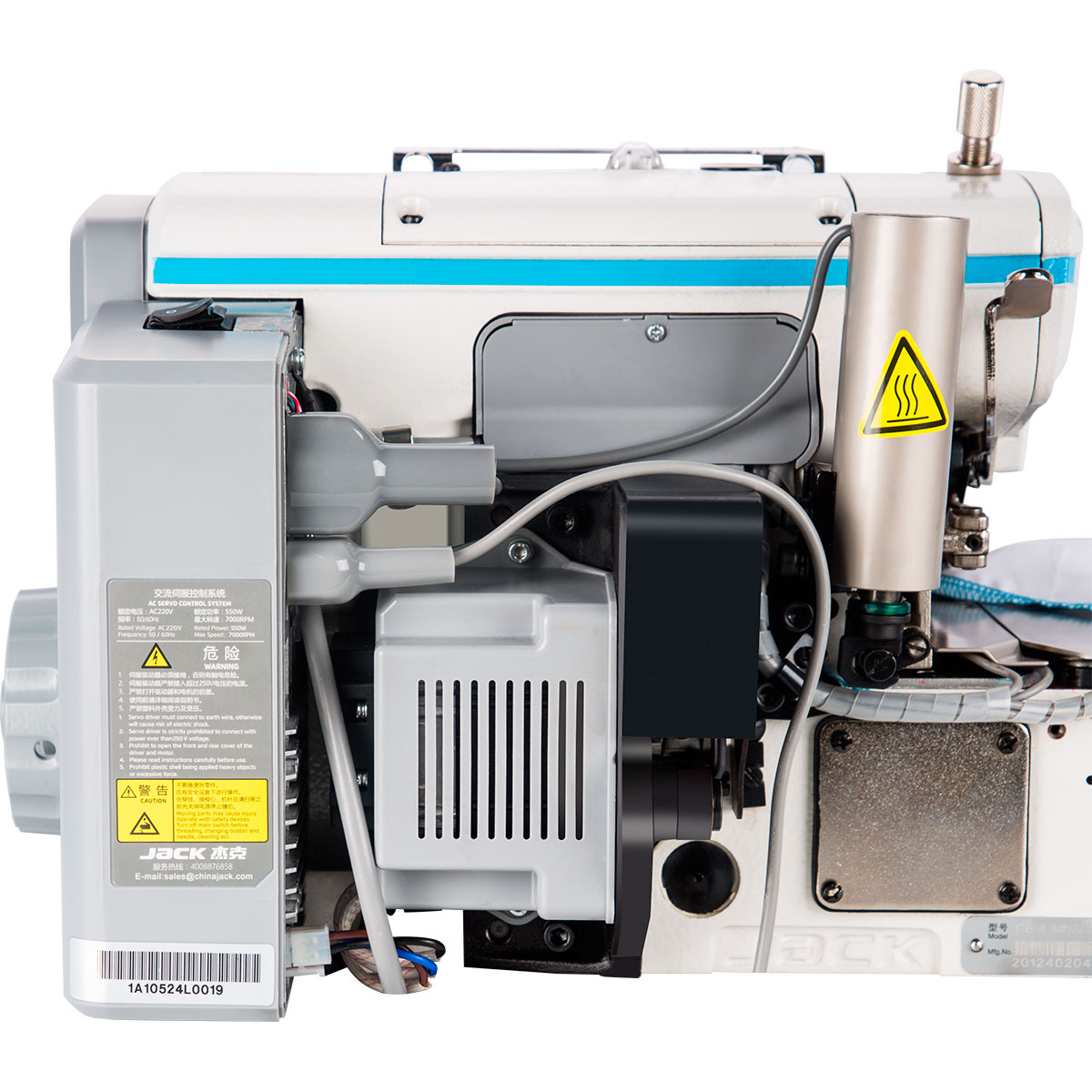

Direct Drive motor.
Electric operation.
Maximum speed: 7000 ppm.
Sewing width: 2x4 mm.
