JACK E4S-3-32R2/223
General information
Overlock machine with integrated high energy saving motor with advanced functions, standby, advanced mechanical structure with integrated oil system to avoid leakage and large sewing space.
The machine has a new button to select the feeding of the machine base on the thickness of the material to be worked.
Advantages
Quick response
Response time is shortened by 40-50% at both start and stop, sewing is easier and sewing speed is higher, which effectively increases productivity.
Single key restart
Through the intelligent panel it is possible to reset the machine, adjust the LED light, easily adjust the parameters and learn the main operations.
TECHNOLOGIES
- Intelligent functions: Intelligent sleep mode that turns the machine off when idle.
- Ease of use: Integrated threading facility in this modern designed overlocker.

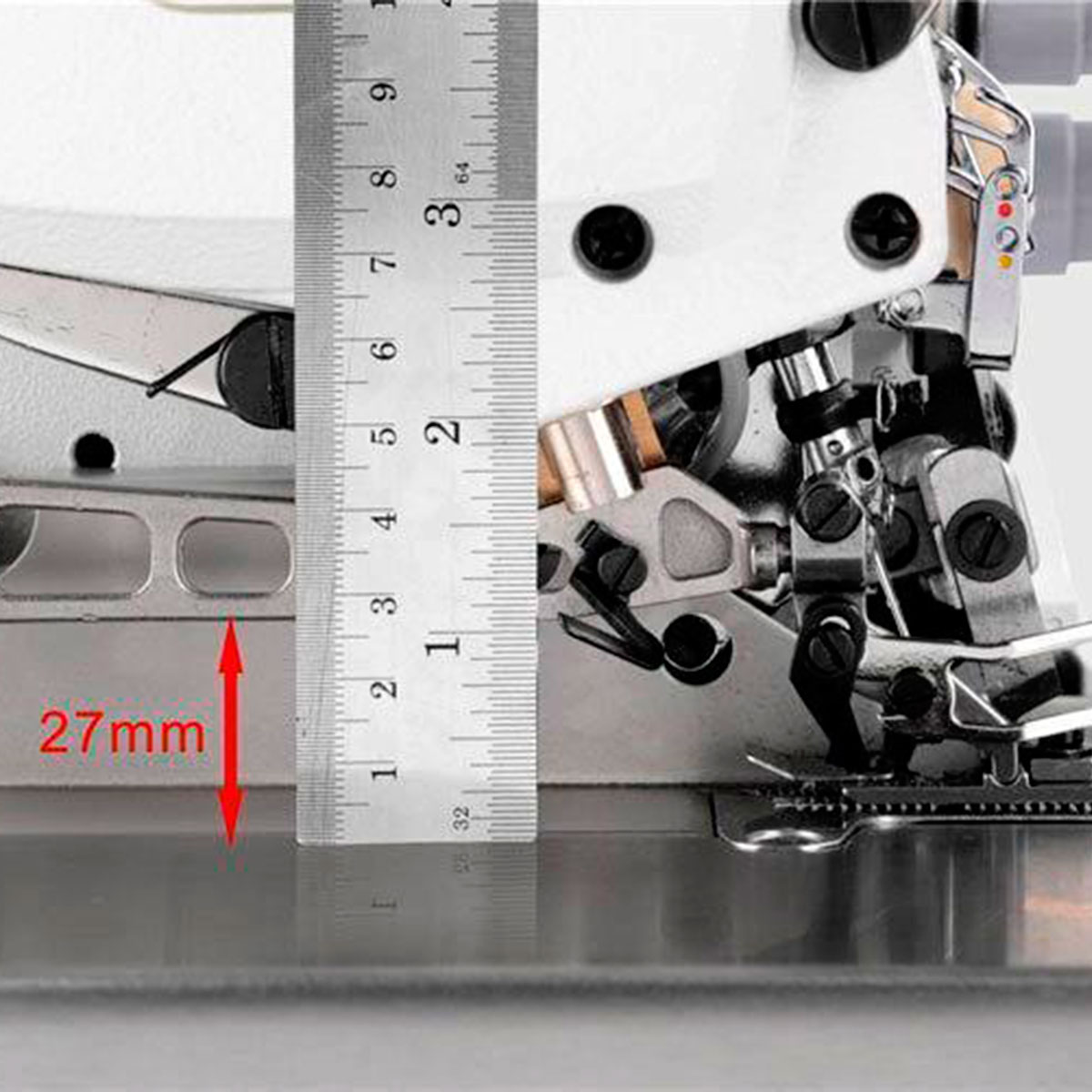

- Increased height: The height of the presser foot, increased to 27 mm, provides a larger working surface.
- Single-shaft motor: Machine torque is reduced and greater stability is ensured during the stroke, sewing speed is increased and there is more durability.
- Oil return limitation: The closed needle bar mechanism and a special needle bar lubrication tray prevent oil spills and ensure clean seams.
APPLICABILITY
- Suitable for different materials, both heavy and light both can be sewn smoothly. The control lever can be set in three positions: A - light materials (light). M - medium materials (medium). H - heavy materials. Differential feed control allows flat, crease-free seams on difficult fabrics.
ACCESSORIES

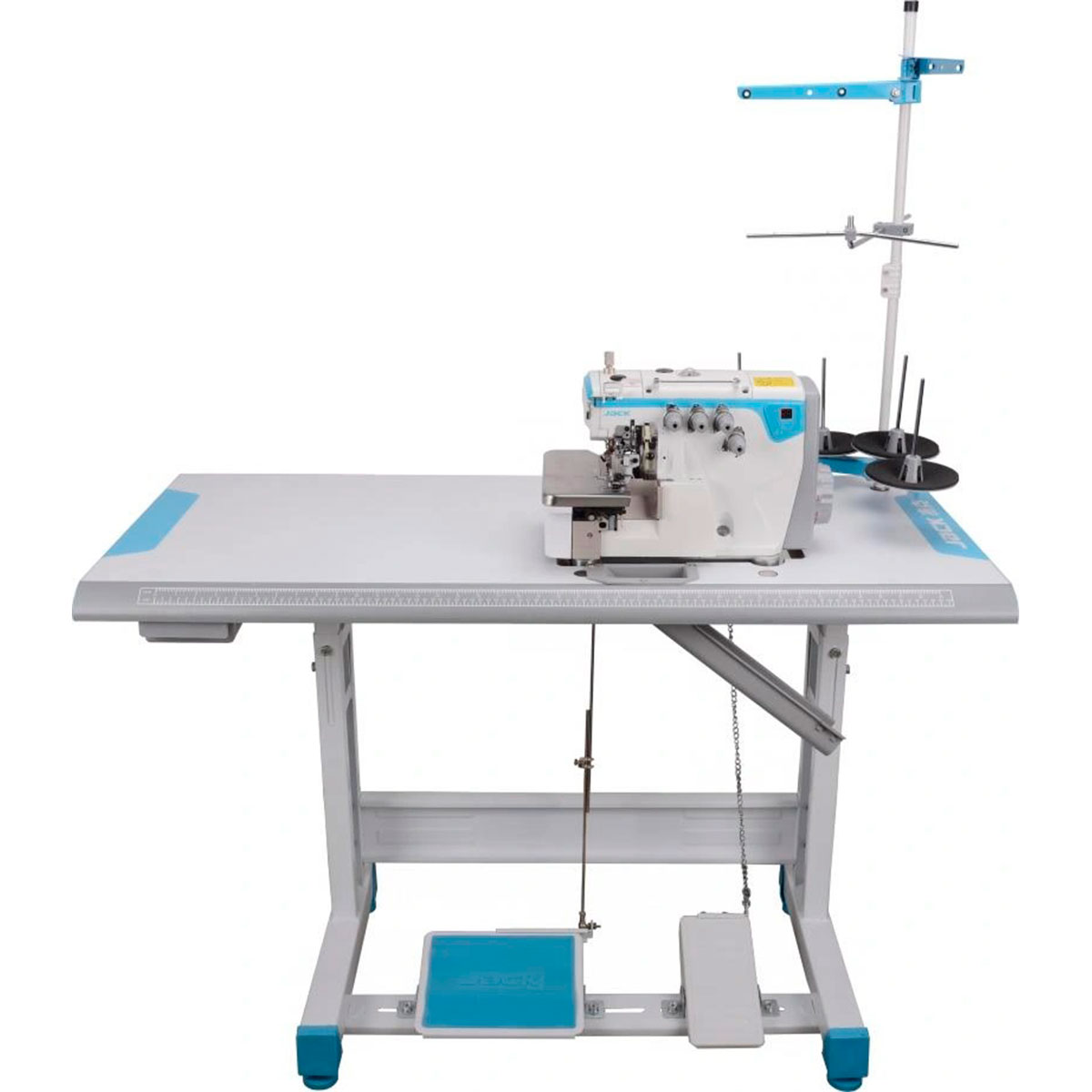

- This machine comes complete with head, energy direct drive internal motor, wheel stand, table and cotton stand.
OTHER SPECIFICATIONS
- High speed direct drive motor.
- Stitch width: 4mm (nice and wide).
- Number of needles: 2.
- Needle gauge: 2mm.
- Adjustable sewing speed: up to 5500 ppm.
