JACK JK-T1377E
General information

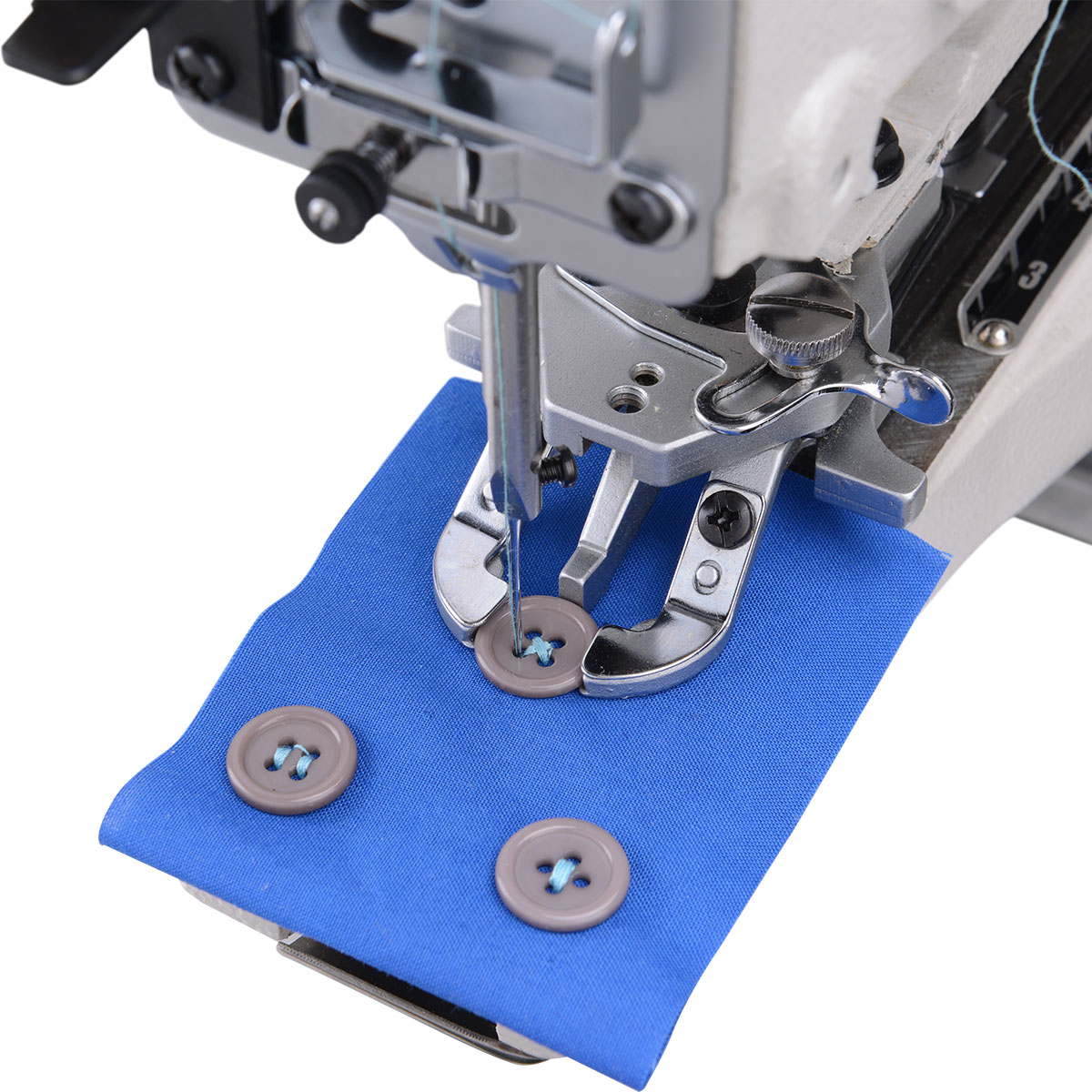

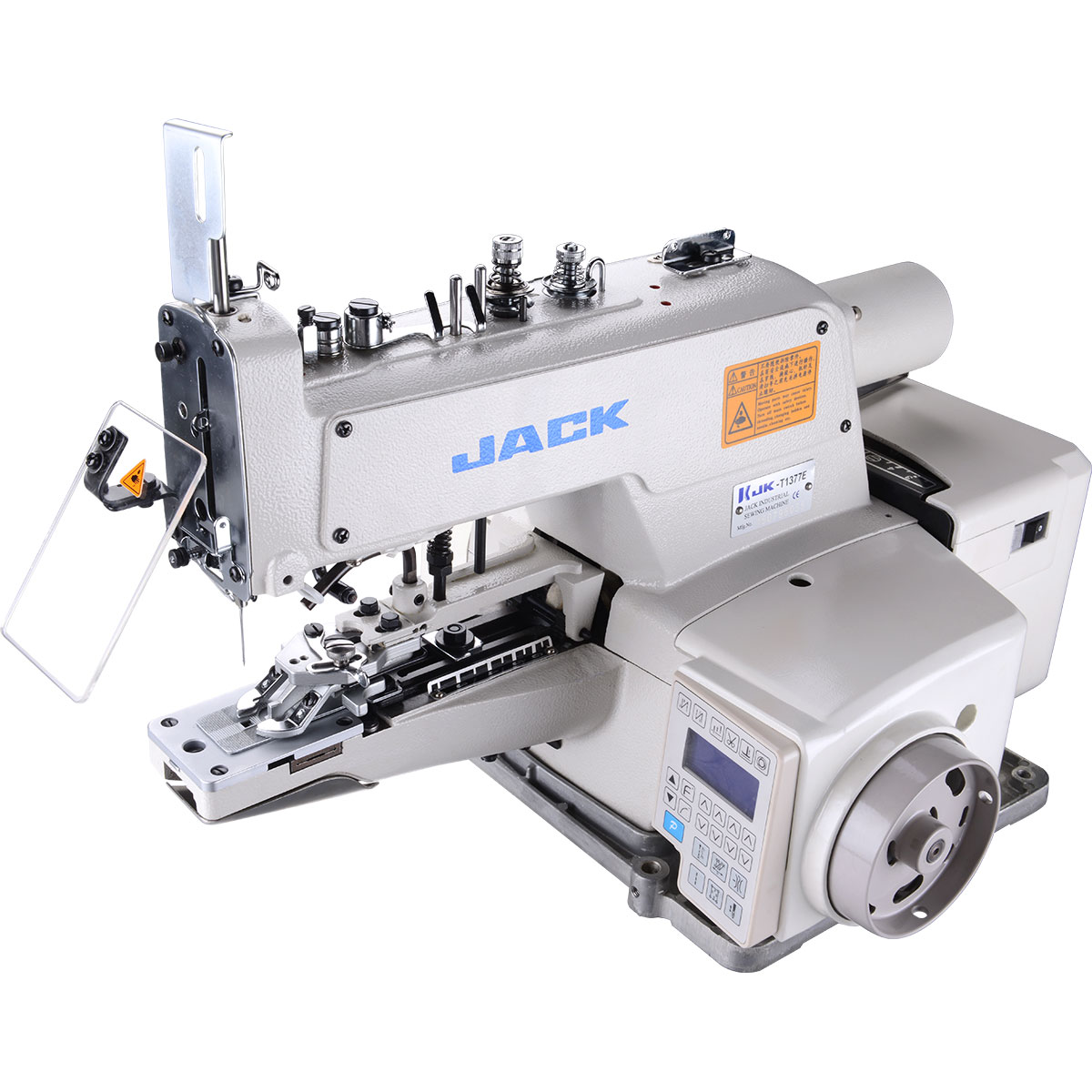

Jack JK-T1377E button sewing machine with automatic thread trimming and presser foot lift.
The stitch shape (for buttons with 4 holes) can be quickly changed between parallel or "cross", without changing the cams. The stitch type is changed by means of the lever on the machine head.
All sewing parameters can be easily programmed on a readable control panel located on the machine head.
Advantages
3 types of sewing

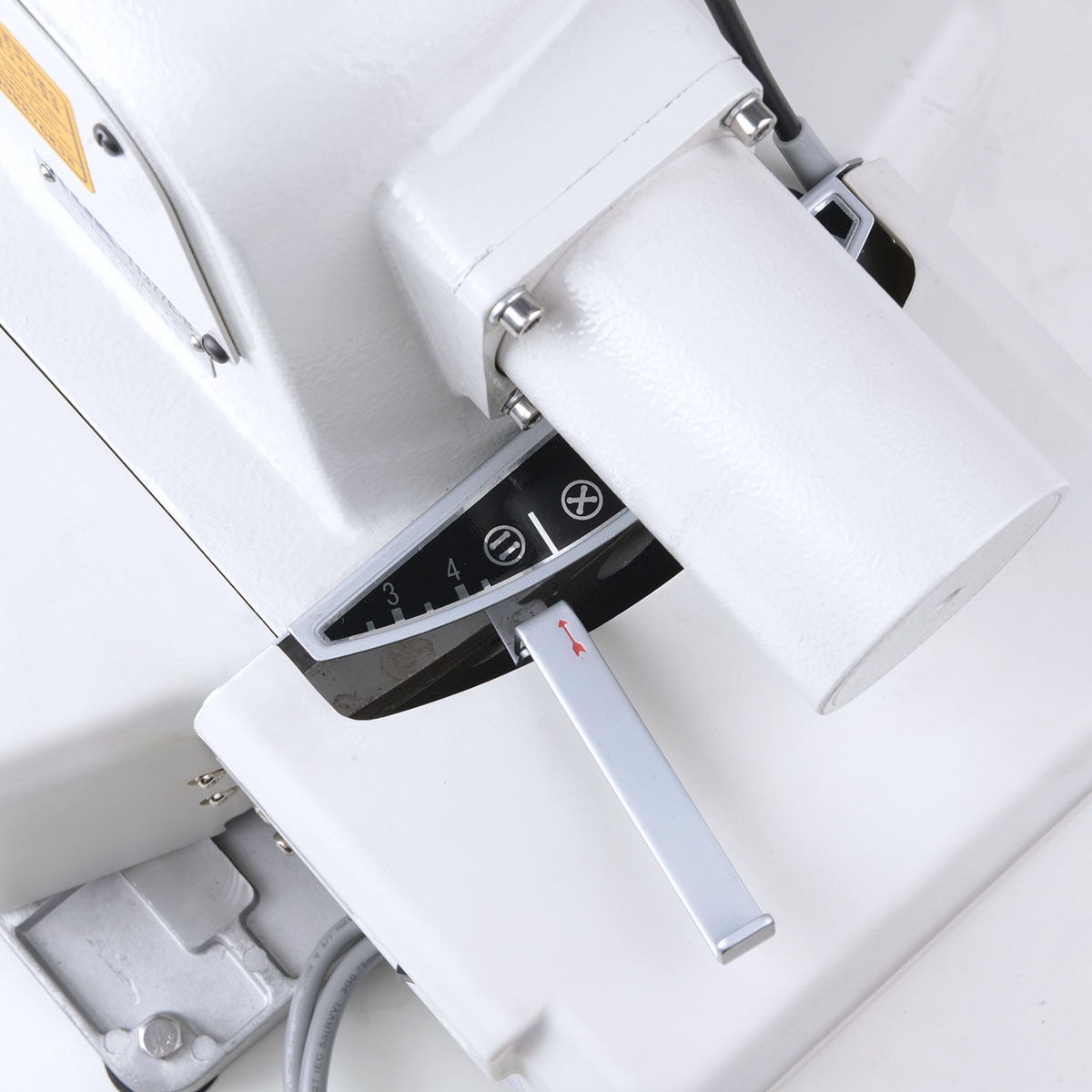

One machine, three ways to place a Button, simply turn the knob to change easily.
Ecological direct drive engine
Integrated motor and control box, 71% energy savings.
TECHNOLOGIES
- Intelligent configuration: Automatic presser foot lifter and thread trimmer controlled by magnet, less labor and higher efficiency.
- Easy to use LCD display: From the panel it is easy to choose the number of stitches, presser foot pressure and set various parameters.

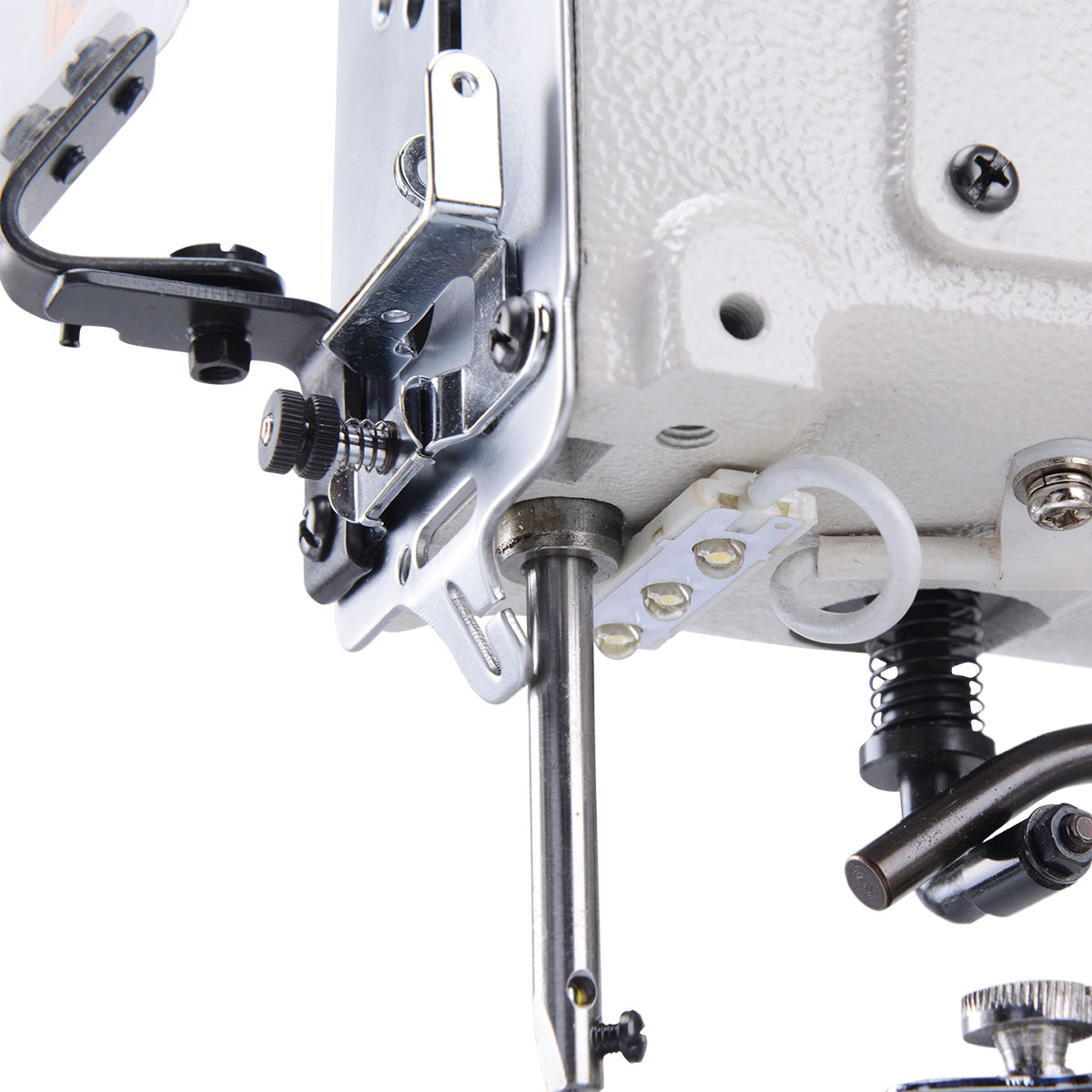

- LED light: More accurate stitching and less tiring eyes.
- Eccentric gear: Low vibration increases the stability and lifetime of the machine.
APPLICABILITY
- Single-thread, chain stitch and button sewing machine.
ACCESSORIES
N/A
OTHER SPECIFICATIONS
- Nº. of needles: 1
- Nº. of threads: 1
- Diameter of button (mm): 10-28
- Button hole size (mm) X: 2.5 ~ 6.5
- Y: 0, 2.5 ~ 4.5
- Automatic thread cutting: Yes
- Automatic presser foot: Yes
- Integrated direct drive: Yes
- Presser foot lifting: 9 mm
- Max. speed: 1500 spm
- Volume (mm): 625x465x440
- Weight (kg): 28.6 / 34.5
