JACK 2060GHC-4Q
General information
1 needle lockstitch machine designed for sewing thicker materials (e.g. leather, upholstery materials), equipped with an energy-saving motor integrated directly into the machine head (Direct Drive system). This solution ensures quiet operation and low energy consumption.

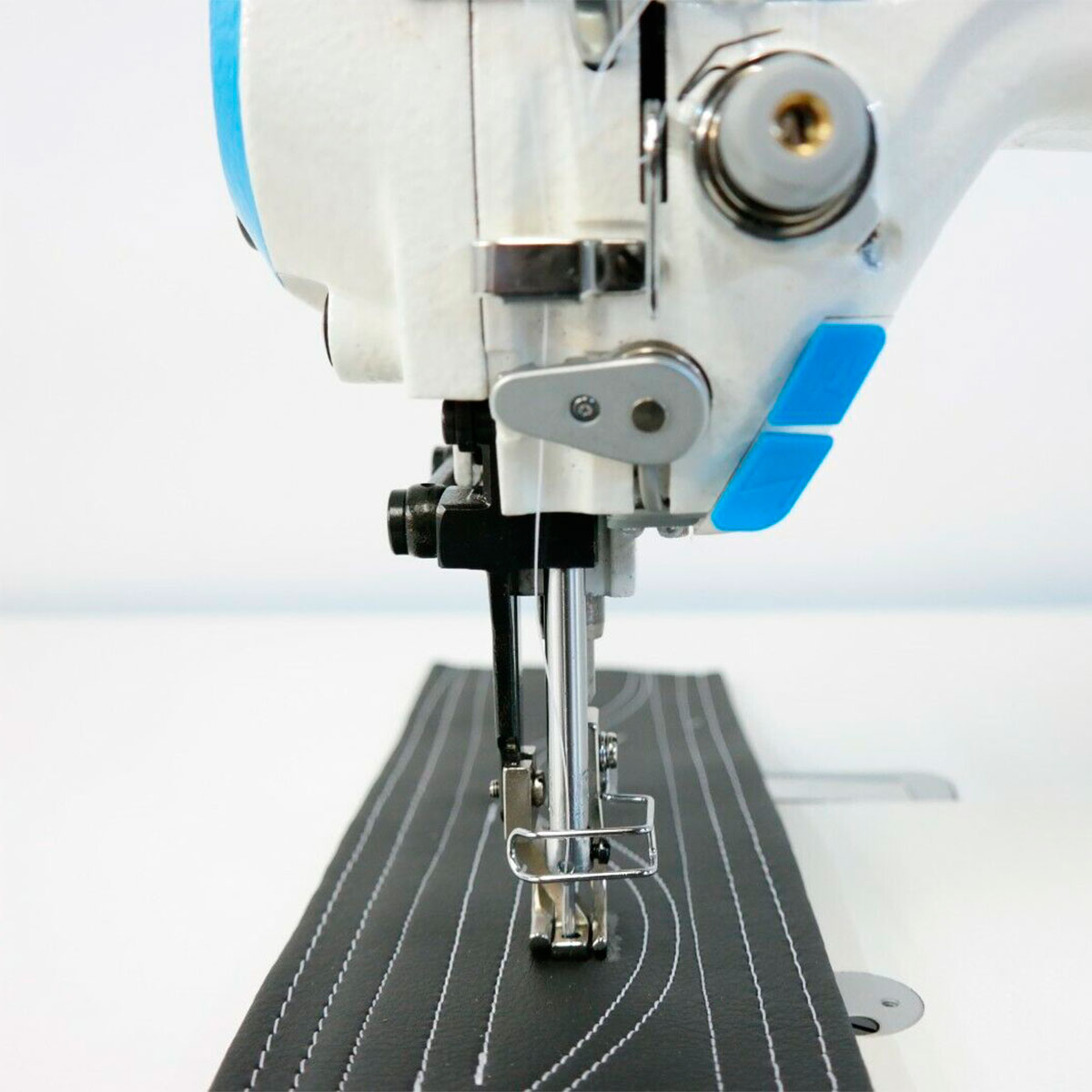

The double transport (lower and upper teeth - rolling foot) ensures a perfect movement of the upper and lower layers of the sewn materials.
The machine has a clear control panel integrated in the sewing head and LED lighting on the needle bar.
Advantages

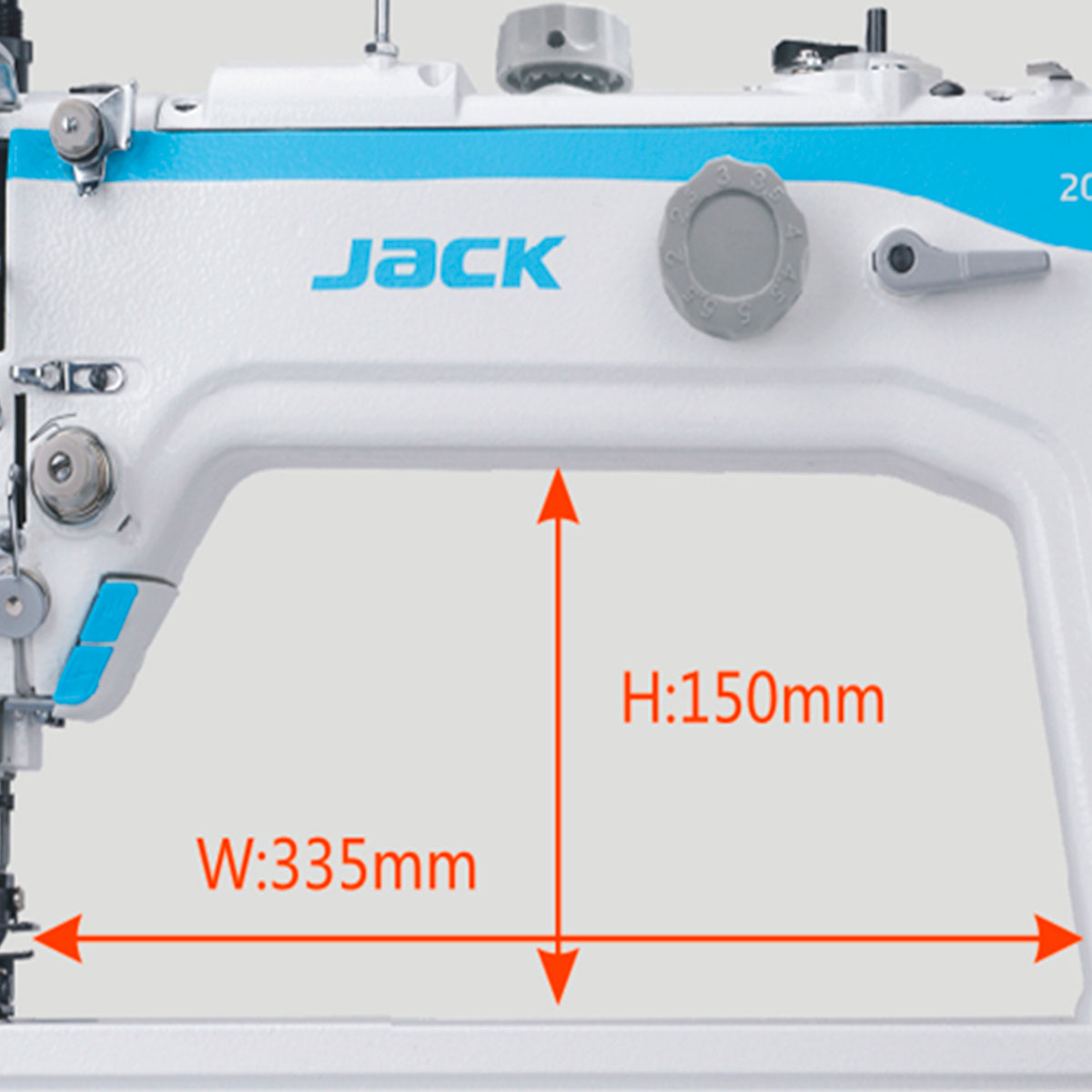

Extended arm
The larger clearance under the arm allows for sewing larger volume materials.

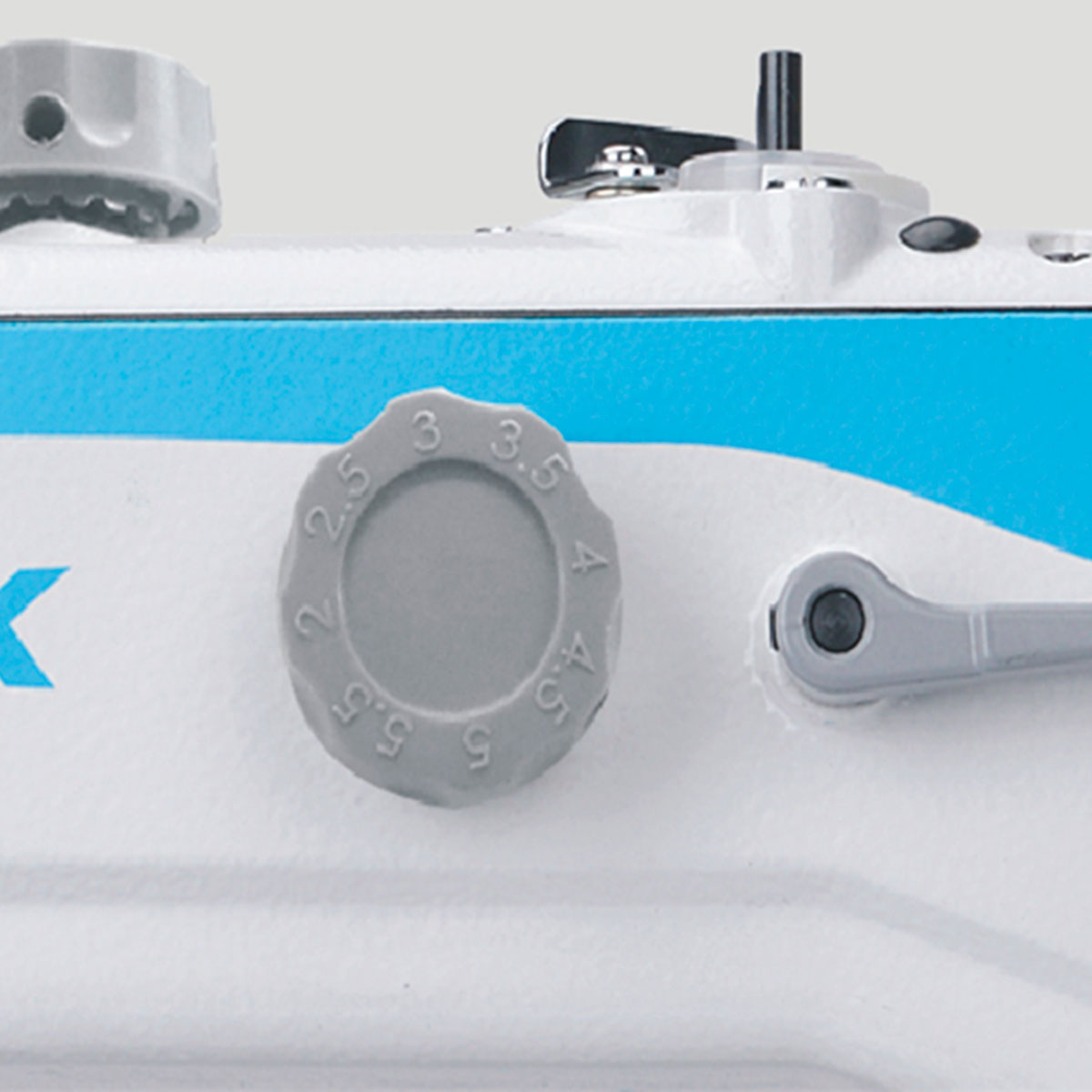

Easy adjustment
Outer and inner foot pressure adjustment maintains the perfect stitch appearance regardless of material thickness.
TECHNOLOGIES
- Automatic backtacking option.
- Thread trimmer.
- Needle positioning.
- Automatic presser foot lifter.
- Needle position sensor (up/down).
- Electronic thread tensioner.
- Reverse button on the machine head.
APPLICABILITY
- The JK-2060G was built specifically to handle heavy-duty sewing tasks such as canvas and leather. The 750W servo motor can handle multiple layers of heavy material with ease and the compound feeder can feed multiple layers smoothly. The advantage of the compound feed is that the needle bar also helps feed the material, preventing puckering or slippage.
- Sofa.
- Car Seat.
- Luggage.
- Shoes.
ACCESSORIES

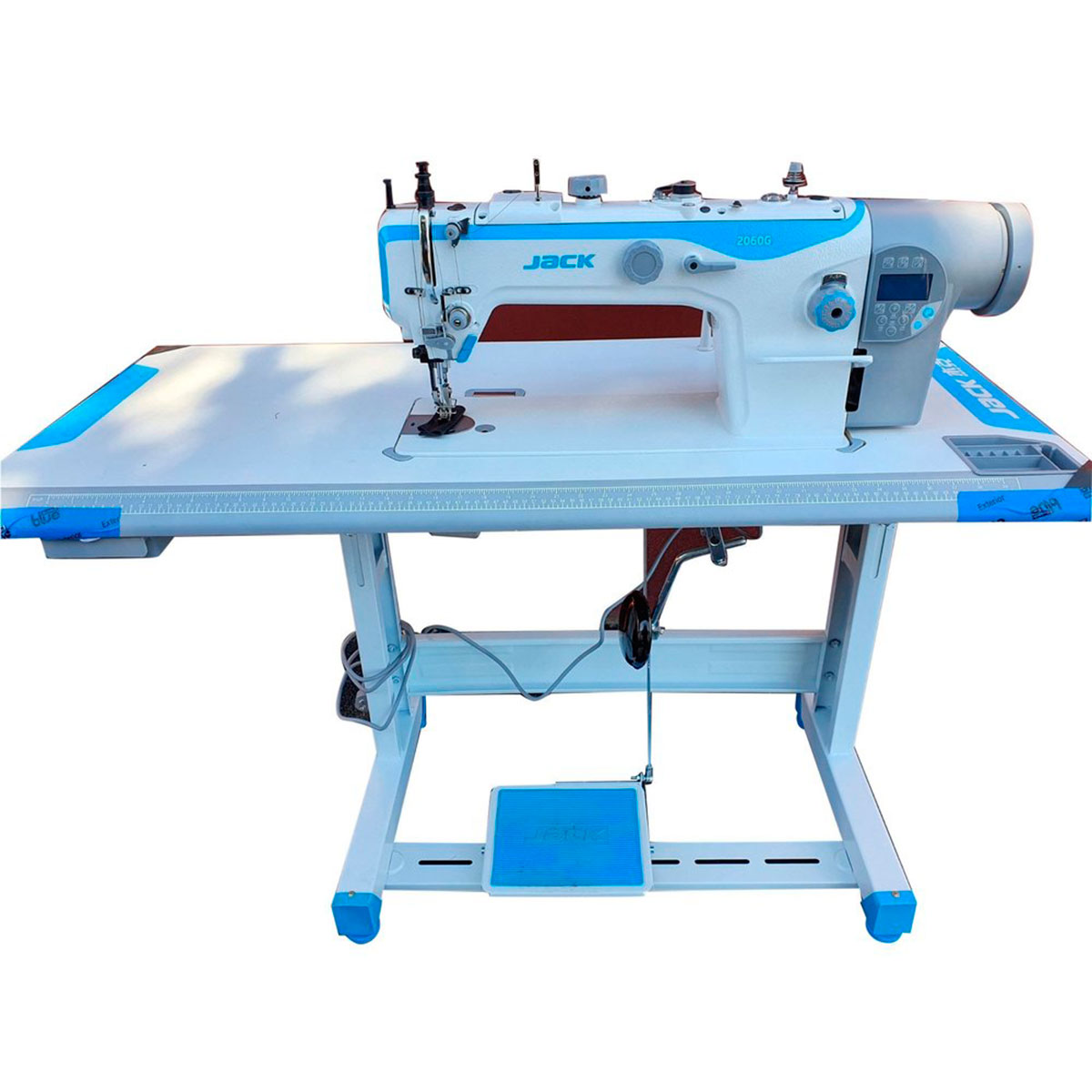

- Table and stand.
OTHER SPECIFICATIONS
- Sewing speed: up to 2200 stitches / min
- Presser foot lift: 5-13 mm
